Under Vine/Tree Strimmer
Voxx undervine strimmer is built firstly as a strimmer, due to its large diameter rotor it require less power and has more coverage for a complete clean area. With an array of interchangeable cords, cord holders and head diameters, it’s easy to set the machine up perfectly for the current weed pressure.
Unique to our Qfit rotor is the ability to mix and match different cords for the present condition to get the perfect finish under vine.
Weed free, damage free and herbicide free.
We offer a variety of different set ups to suit customers requirements:
- Standard fixed frame front/rear mount.
- Flex frame which allows the frame to flex independently of the tractor.
- Single over row, double over row.
Double acting width adjustment from 2m-2.5m for vines as standard. Wider and Narrow frame available up to 4.2m working width.
Electro hydraulic control available for tractors with limited spool valve availability.
Head options:
- 300 head length
- 400 head length
- 500 head length
- 600 head length
- 800 head length.
- All with Qfit cord holders.
Low profile head for low fruiting vines to accommodate low wires. Adjustable rub bar. Now upgraded from 22mm tube to 22mm solid bar for longer life durability.
Spring adjustment is standard. We find this is simple, works perfectly, fast setup and avoids pulling vines out in the event of a failure.
Head angle is infinitely adjustable with in 25°-70° rake. This allows customers to go slower for complete cleaning or faster with more head rake depending on your desired results.
Bespoke builds also available on request off season.
Double head machine requires 40ltr min oil flow. 1 double acting spool valve with a free flow return.

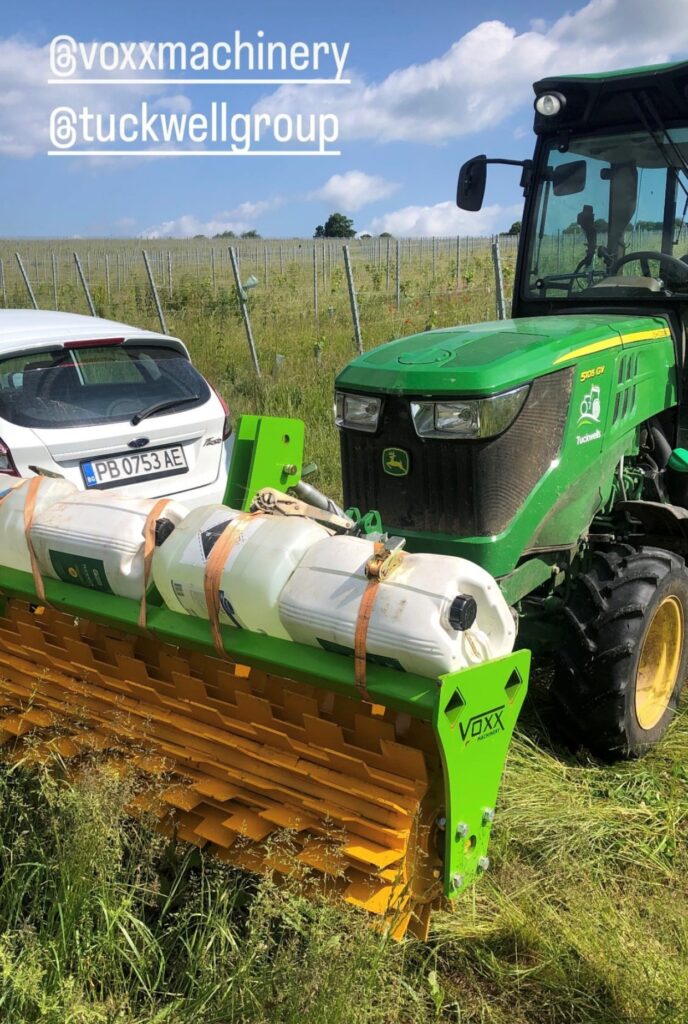

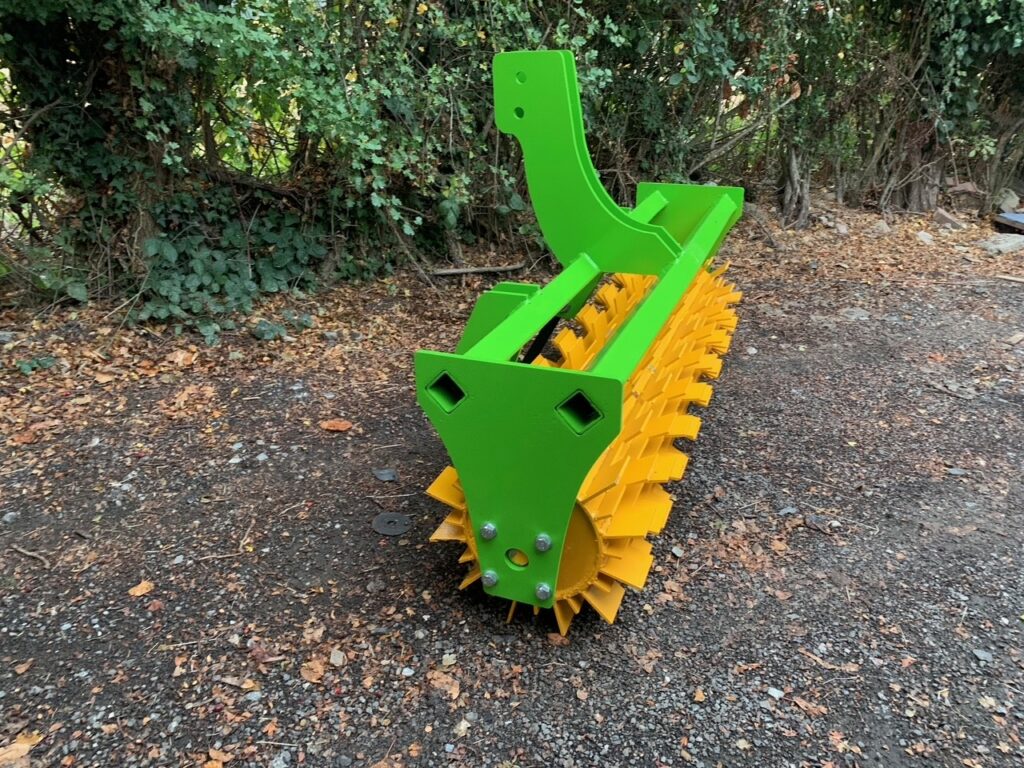

Crimper Roller XR
Voxx XR crimper roller, specifically designed for the use in rolling cover crops to improve soil organic matter and improve percolation of the soil along with resilience to heavy rain and intense sun. The principle behind a crimper roller is to crack and bruise the stem of the plant it’s running in turn laying it down to create a thatch, this can then be allowed to wilt and be cultivated into the soil or mulched and placed under the tree or vine depending on required outcome.
Standard machine:
- 1.0m-3.0m
- 6mm laser cut teeth
- 300mm diameter drum(with water fill port)
- Heavy low profile built frame.
- Deflectors to eliminate snagging on trees/vine
Upgrades:
- Laser cut weights to allow for heavies crimping effect.
- Larger diameter roller.
- Hydraulic side shift.

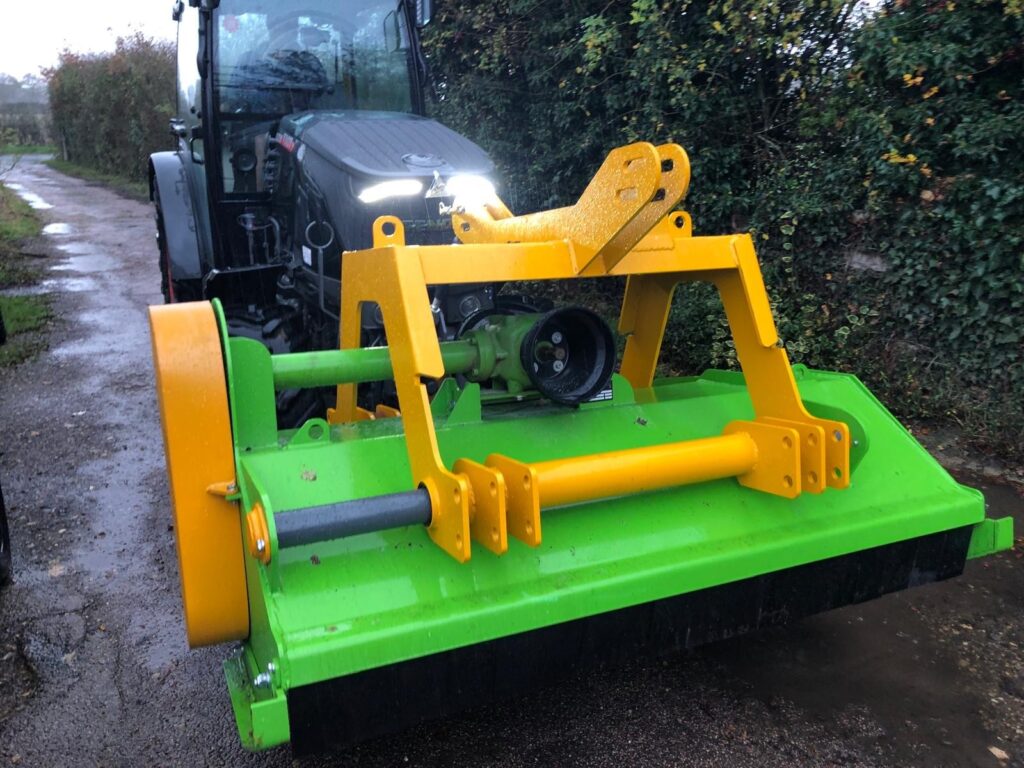

Fail Mulcher
Voxx flail mulcher range has history and pedigree, originally built in Italy in the 2000’s, now manufactured in the uk, were carrying on the ethos of built for a life time of work. Where strength and reliability are key, equipped with possibly the most robust rotor in the industry for its specification. You’ll never tear off a flail holder off on the vx series flail mulcher due to our unique over ride design coupled with being made from hardox. A minimum 8mm thick rotor tube with a diameter of 193mm it’s built to do more than the job in hand, stay in balance and combat any thing put in front of it.
Available in 1.5m width-2.5m
Standard machine spec:
- 120mm hammers.
- Single skin 6mm body.
- HD serrated anvil for fine mulching. (Replaceable)
- 150mm rear roller and scraper.
Upgrade options:
- Wider hammers, heavier hammers.
- Rotor upgrade thickness up to 20mm available.
- Mulching fingers.
- Double skin.
- Heavier body construction.
